Identification:

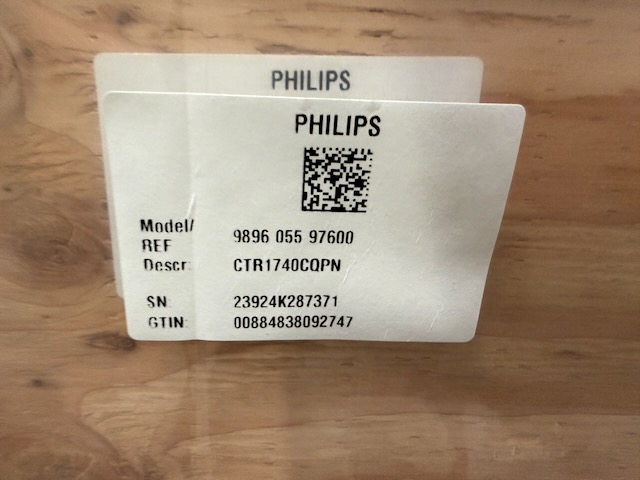

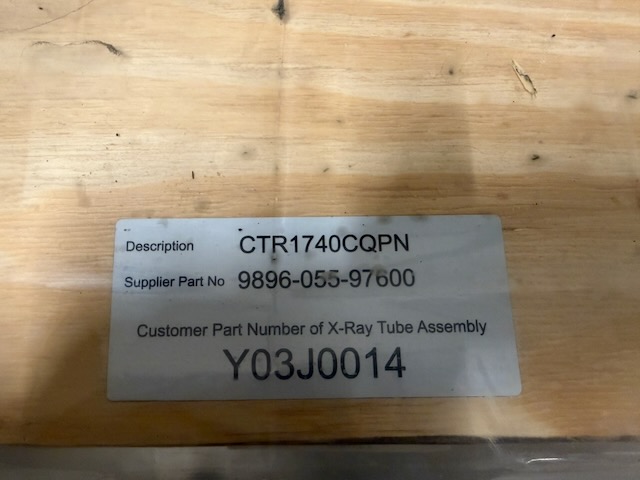

- Model: CTR1740CQPN
- Catalog/Part No.: 4598-004-83141 (also cross-referenced as 9896-055-97600 for the Philips MX 6000)
- Device ID: 00884838070561
- Manufacturer: Dunlee, a Division/brand of Philips Medical Systems
- Series: CTR1700 (Dunlee’s entry-level CT tube platform)
Performance specs:
| Spec | Value |
|---|---|
| Max power (IEC rated, 4/600 sec repeated) | 28–42 kW |
| Max nominal gantry speed (@570mm FS to iso-center) | Up to 77 rpm |
| Max G-force for operation | 5.3g |
| Nominal tube voltage | 140 kV |
| Focal spots | Large: 0.6 × 1.3mm / Small: 0.4 × 0.7mm |
| Dynamic focal spot (X-DFS / Z-DFS) | Not available on either axis |
| Polarity | Bipolar |
