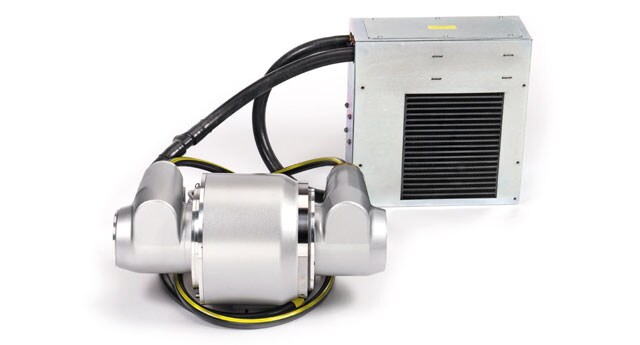

Dunlee CTR 1725CSPN
The Dunlee CTR 1725CSPN is a CT X-ray tube from Dunlee’s entry-level CTR1700 series, part number 9896-055-94000 (also written 989605594000).
Key details:
- Manufacturer: Dunlee (a Philips Company Group brand)
- System compatibility: Designed for the Philips MX 4000 CT scanner system, an X-ray tube specifically designed for use with MX 4000 scanner systems
- Series: CTR1700 — Dunlee’s entry-level CT tube line
The Dunlee CTR 1725CSPN is a CT X-ray tube from Dunlee’s entry-level CTR1700 series, part number 9896-055-94000 (also written 989605594000).
Key details:
- Manufacturer: Dunlee (a Philips Company Group brand)
- System compatibility: Designed for the Philips MX 4000 CT scanner system, an X-ray tube specifically designed for use with MX 4000 scanner systems
- Series: CTR1700 — Dunlee’s entry-level CT tube line
Technical Specs shared across the CTR1700 series (CTR1720/1725/1735/1740), since Dunlee publishes them as a common family:
- Maximum power: 28–42 kW (IEC rated 4/600 sec repeated)
- Max nominal gantry speed: up to 77 rpm (@570mm FS to iso-center distance)
- Max G-force for operation: 5.3g
- Nominal tube voltage: 140 kV
- Focal spots: Large 0.6 × 1.3mm, Small 0.4 × 0.7mm
- Polarity: Bipolar
- No dynamic focal spot (X-DFS/Z-DFS)
